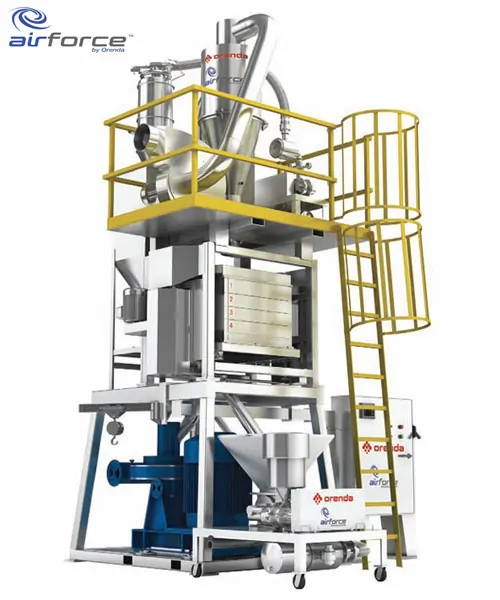

The AF H1D 420 is our Show Stopper and shares the same footprint as the AF H1D 500. The performance, efficiency, and great production rate are hard to beat. Price wise, this model has it all.
| Model | AF H1D420 | ||
| Number of Mills | 1 | ||
| Disc Diameter (2 double faced discs) | in. | 16.6 | |
| mm | 420 | ||
| Total Electrical Power Requirement | HP | 110 | |
| KW | 82 | ||
| Mill Motor | HP | 100 | |
| KW | 75 | ||
| Voltages Available | As Required | ||
| System Base Width x Depth | in. | 85 x 71 | |
| mm | 2159 x 1803 | ||
| System Maximum Height | in. | 216 | |
| mm | 5486 | ||
| Sifter Type | Centrifugal | ||
| Total Sifter Screen Area (5 decks) | in2 | 3109 | |
| cm2 | 20060 | ||
| Method of Grind Gap Adjustment | External While Running | ||
| Rate Control Type (Temp, Amps, Both) | Both | ||
| Computer Controls Included | Yes | ||
| Touchscreen Adjustable High Temp Control | Yes | ||
| Touchscreen Adjustable High Amp Control | Yes | ||
| Hopper Loader | Optional | ||
| Metal Separator | Optional | ||
| Quick Clean Airlock | Optional | ||
| Dust Collector | Optional | ||
| Production Rate | 30 Mesh HDPE | lb/hr | 600 – 1200 |
| 600 microns | kg/hr | 272 – 545 | |
| Production Rate | 20 Mesh rigid PVC | lb/hr | 700 – 1475 |
| 840 microns | kg/hr | 318 – 670 | |
| In-Plant Set-up & Training Available | Yes | ||
| Orenda AirForce Technology | |||
| US Patent # 9,468,929 | |||
| US Design Patent #: D 734376 | |||
