AF LAB

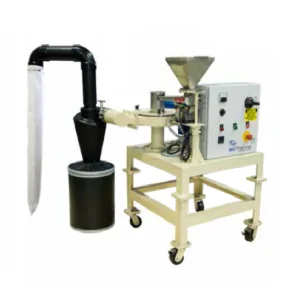

AF LAB Pulverizer / Micronizer

The AF LAB pulverizer is our smallest AirForce pulverizer built for the purpose of very small runs. This pulverizer is primarily used in testing for quality control and similar applications. The AF LAB pulverizer mill is powered by a 15 HP motor, and offers manual rate control.

Model AF LAB PULVERIZER
Number of Mills 1
Disc Diameter (2 double faced discs) in. 10
mm 254
Total Electrical Power Requirement HP 15
KW 11
Mill Motor HP 15
KW 11
Voltages Available As Required
System Base Width x Depth in. 46 x 48
mm 1168 x 1219
System Maximum Height in. 70
mm 1778
Rate Control Type (Temp, Amps, Both) Manual
We can help with particle size reduction applications. Get A Quote
