AF H1D 250

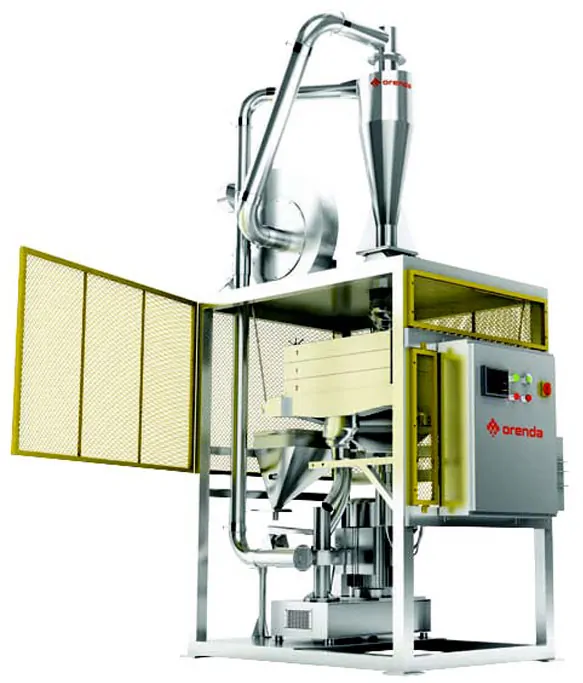

AF H1D 250 Pulverizer / Micronizer

The AF H1D 250 is the baby of the AirForce pulverizers. The AF H1D 250 boasts a 55 HP mill motor with a 3 sifter deck capable of producing up to 600 lb/hr for LLDPE and up to 700 lb/hr for PVC. The AF H1D 250 is proof that Orenda makes smaller faster and cooler, with production rates up to several hundred pounds per hour. Good things really do come in small packages.

Model AF H1D250
Number of Mills 1
Disc Diameter (2 double faced discs) in. 10
mm 254
Total Electrical Power Requirement HP 55
KW 41
Mill Motor HP 50
KW 37.3
Voltages Available As Required
System Base Width x Depth in. 65 x 73.5
mm 1651 x 1867
System Maximum Height in. 176
mm 4420
Sifter Type Gyroscopic
Total Sifter Screen Area (3 decks) in2 1866
cm2 12036
Method of Grind Gap Adjustment External While Running
Rate Control Type (Temp, Amps, Both) Both
Computer Controls Included Yes
Touchscreen Adjustable High Temp Control Yes
Touchscreen Adjustable High Amp Control Yes
Hopper Loader N/A
Dust Collector Optional
Metal Separator Optional
Quick Clean Airlock Optional
Production Rate 30 Mesh or 600 microns LLDPE lb/hr 300 – 600
kg/hr 136 – 272
Production Rate 20 Mesh or 840 microns Rigid PVC lb/hr 400 – 700
kg/hr 180 – 318
In-Plant Set-up & Training Available Yes
We can help with particle size reduction applications. Get A Quote
